17. OAF Entry Master Detail Page

OAF Master-Detail page will be covered in this tutorial. In order to make a master-detail OAF page, we need to use Association and View Link BC4J objects for keeping data integrity.

1. Run below sql in order to create tables, synonyms and sequences. Please pay attention to foreign key constraint between two tables. This constraint provides both data integrity and automatic generation of Association and View Link objects in JDeveloper.

create table xxntc.xx_teams (

    team_id             number primary key,

    team_name           varchar2(100),

    budget              number,

    establish_date      date,

    creation_date       date,

    created_by          number,

    last_update_date    date,

    last_updated_by     number,

    last_update_login   number

);

create public synonym xx_teams for xxntc.xx_teams;

create sequence xxntc.xx_teams_s start with 1;

create table xxntc.xx_players (

    player_id           number primary key,

    team_id             number,

    name                varchar2(100),

    surname             varchar2(100),

    salary              number,

    position            varchar2(100),

    creation_date       date,

    created_by          number,

    last_update_date    date,

    last_updated_by     number,

    last_update_login   number,

    constraint xx_players_fk

    foreign key (team_id)

    references xxntc.xx_teams (team_id)

);

create public synonym xx_players for xxntc.xx_players;

create sequence xxntc.xx_players_s start with 1;

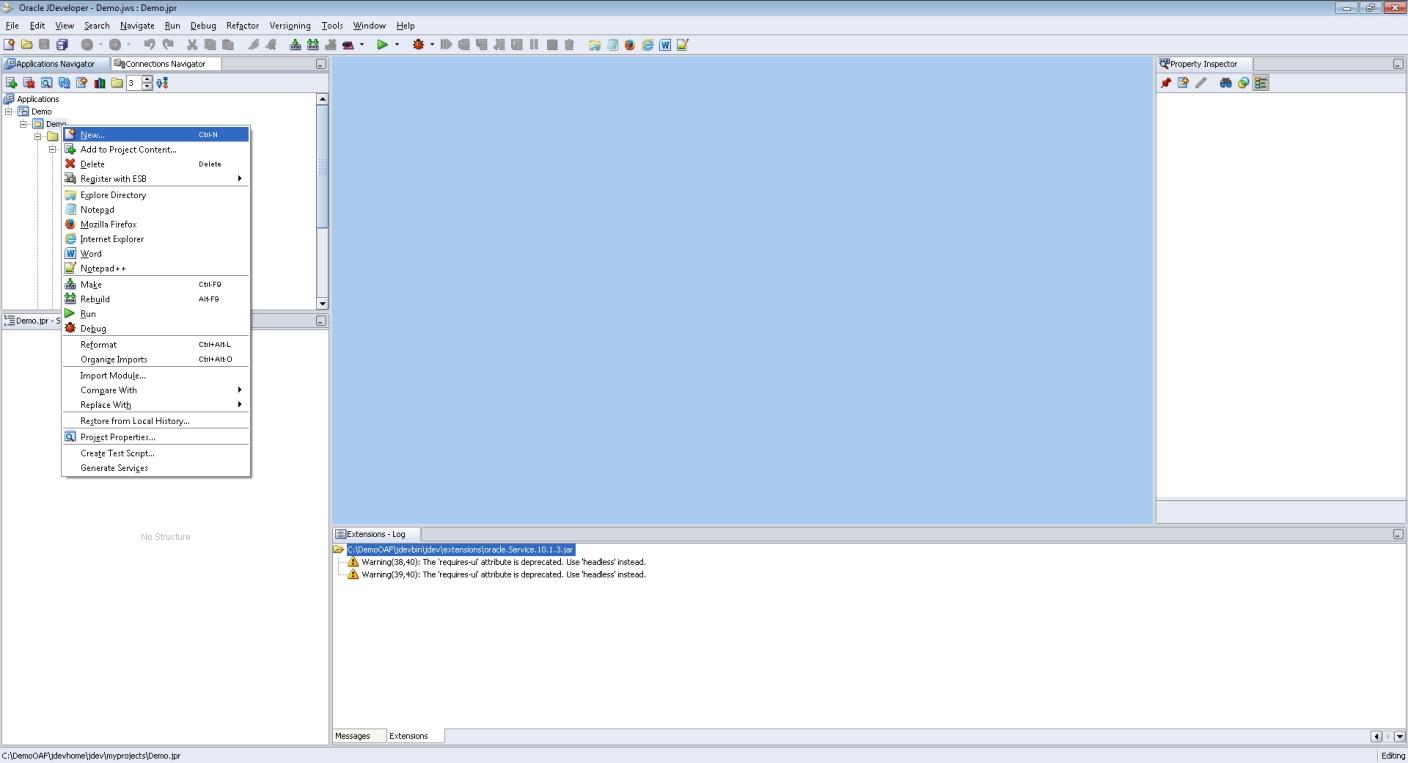

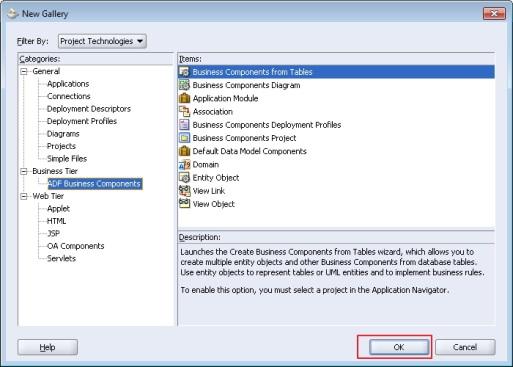

2. Open a JDeveloper which has already prepared for initial setup. Right Click to your project and click New. Go To Business Tier-> ADF Business Componenets -> Business Components from Tables and click Ok button.

Image1:

3.Organize your entity objects.

Image2:

4.Organize your view objects.

Image3:

5.Keep going without creating read-only view objects.

Image4:

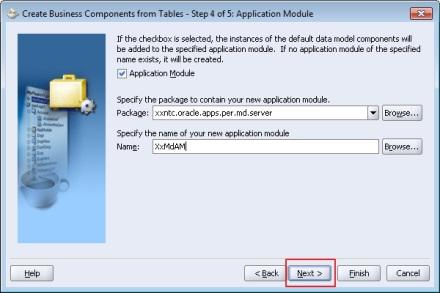

6. Create application module and add your view objects into it.

Image5:

7. Final structure for BC4J model:

Image6:

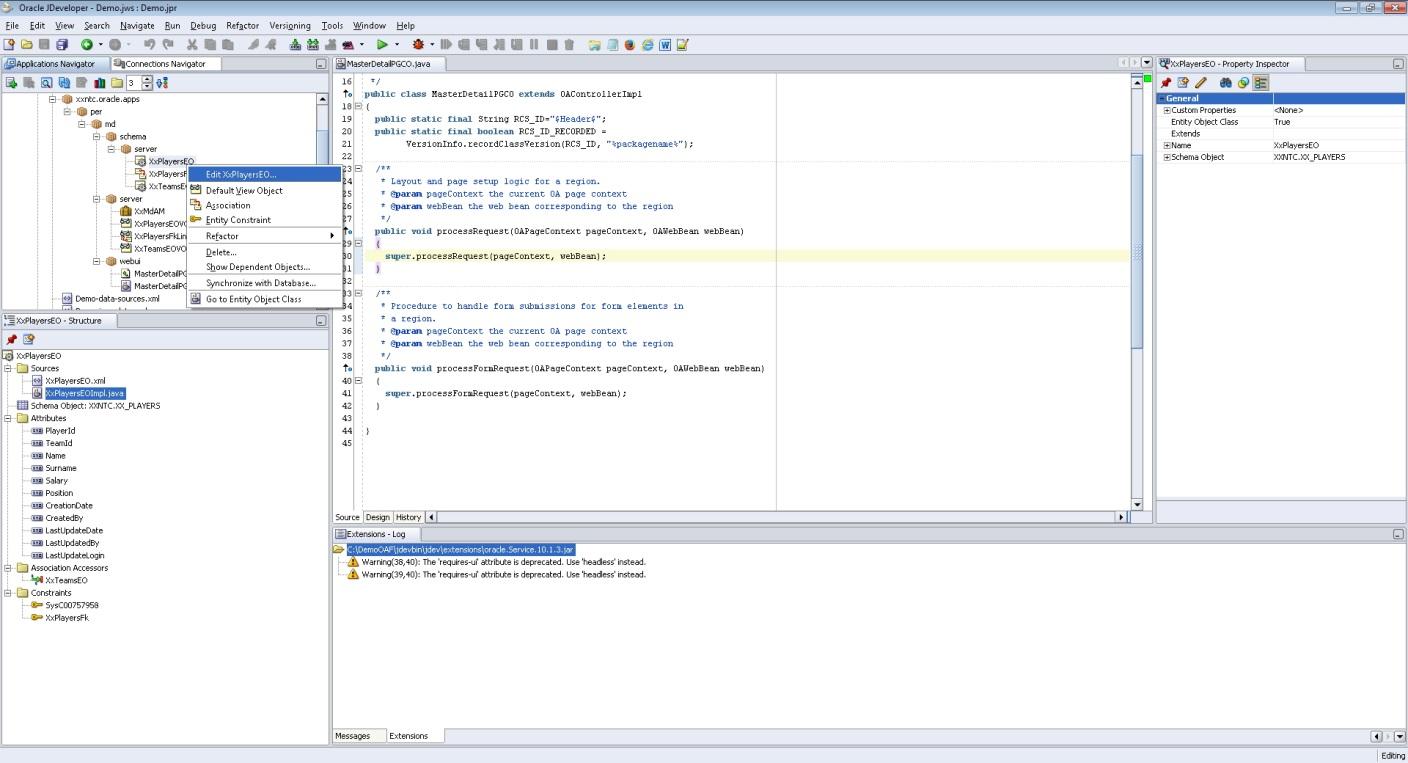

8. Right click to XxPlayersFkAssoc  association and click edit.

Image7:

9.In order to automatically set TeamId for child entity, there must be a composite relationship between master and detail entity objects. In order to do this, check composite association.

Image8:

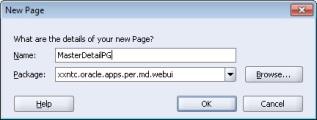

10. Create a new OAF page with following steps.

Image9:

Image10:

Image11:

11. Define a controller object for your page.

Image12:

12. Edit PageLayout Region properties:

ID	Window Title	Title	AM Definition
PageLayoutRN	Master-Detail Page	Master-Detail Page	xxntc.oracle.apps.per.md.server.XxMdAM

13. Add two new region to page layout region and edit their properties with below information.

ID	Item Style	Text
MasterHdrRN	header	Teams

ID	Item Style	Text
DetailHdrRN	header	Players

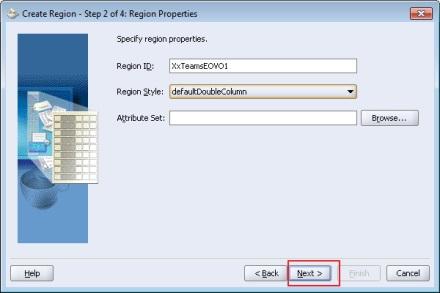

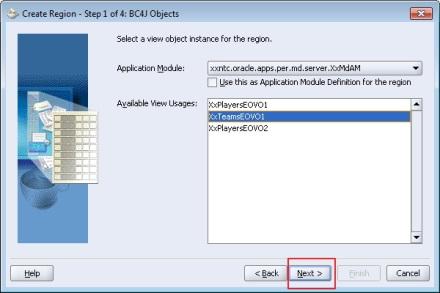

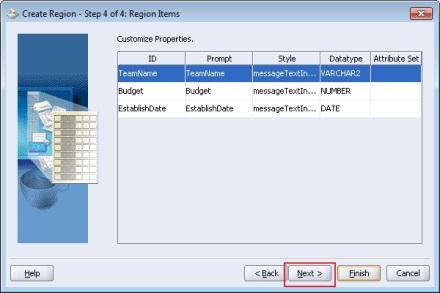

14. Add a new region using wizard into MasterHdrRN.

Image13:

Image14:

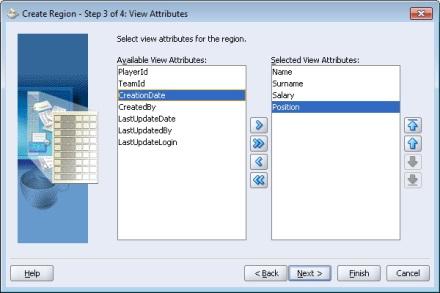

Image15:

Image16:

Image17:

15. Add a new region using wizard into DetailHdrRN .

Image18:

Image19:

Image20:

Image21:

Image22:

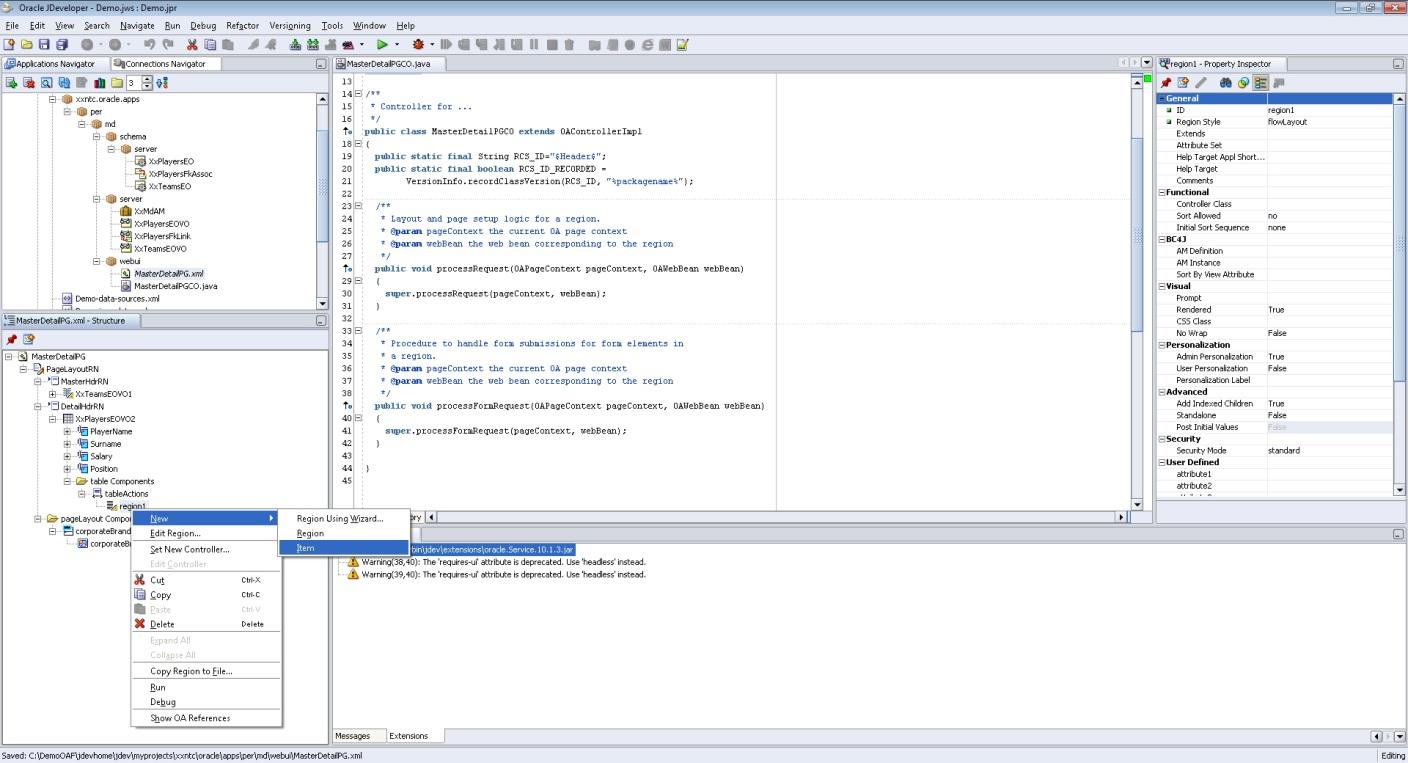

16. Add tableActions into XxPlayersEOVO2 table region.

Image23:

17. Add New Item to Region1 under table actions and edit item properties with below information.

Image24:

ID	Item Style	Prompt	Action Type	Event
AddPlayer	button	Add Player	firePartialAction	addPlayer

19. Add a new region into PageLayoutRN and edit properties with below information.

ID	Region Style
PageButtonBarRN	pageButtonBar

20. Add a new item into PageButtonBarRN and edit properties.

ID	Item Style	Prompt
Apply	submitButton	Save

21. Create and Ovewwrite create methods for entity object java files XxPlayersEO and XxTeamsEO.

Image25:

Image26:

22. Make the following code changes.

MasterDetailPGCO.java process request

public void processRequest(OAPageContext pageContext, OAWebBean webBean)

{

super.processRequest(pageContext, webBean);

OAApplicationModule am = pageContext.getApplicationModule(webBean);

if (!pageContext.isFormSubmission()) {

am.invokeMethod("createEmptyTeam");

}

}

MasterDetailPGCO.java - processFormRequest

public void processFormRequest(OAPageContext pageContext, OAWebBean webBean)

{

super.processFormRequest(pageContext, webBean);

OAApplicationModule am = pageContext.getApplicationModule(webBean);

if ("addPlayer".equals(pageContext.getParameter(OAWebBeanConstants.EVENT_PARAM))) {

am.invokeMethod("addPlayer");

}

else if (pageContext.getParameter("Apply") != null) {

am.invokeMethod("commit");

}

}

XxTeamsEOImpl.java

public void create(AttributeList attributeList) {

super.create(attributeList);

OADBTransactionImpl transaction = (OADBTransactionImpl)getOADBTransaction();

Number TeamId = transaction.getSequenceValue("XXNTC.XX_TEAMS_S");

setTeamId(TeamId);

}

XxPlayersEOImpl.java

public void create(AttributeList attributeList) {

super.create(attributeList);

OADBTransactionImpl transaction = (OADBTransactionImpl)getOADBTransaction();

Number PlayerId = transaction.getSequenceValue("XXNTC.XX_PLAYERS_S");

setPlayerId(PlayerId);

}

XxMdAMImpl.java

public void createEmptyTeam() {

XxTeamsEOVOImpl vo = getXxTeamsEOVO1();

if (!vo.isPreparedForExecution()) {

vo.executeQuery();

}

Row row = vo.createRow();

vo.insertRow(row);

row.setNewRowState(Row.STATUS_INITIALIZED);

}

public void commit() {

getOADBTransaction().commit();

}

public void addPlayer() {

OAViewObject vo = (OAViewObject)getXxPlayersEOVO2();

if (!vo.isPreparedForExecution()) {

vo.executeQuery();

}

Row row = vo.createRow();

vo.insertRow(row);

row.setNewRowState(Row.STATUS_INITIALIZED);

}

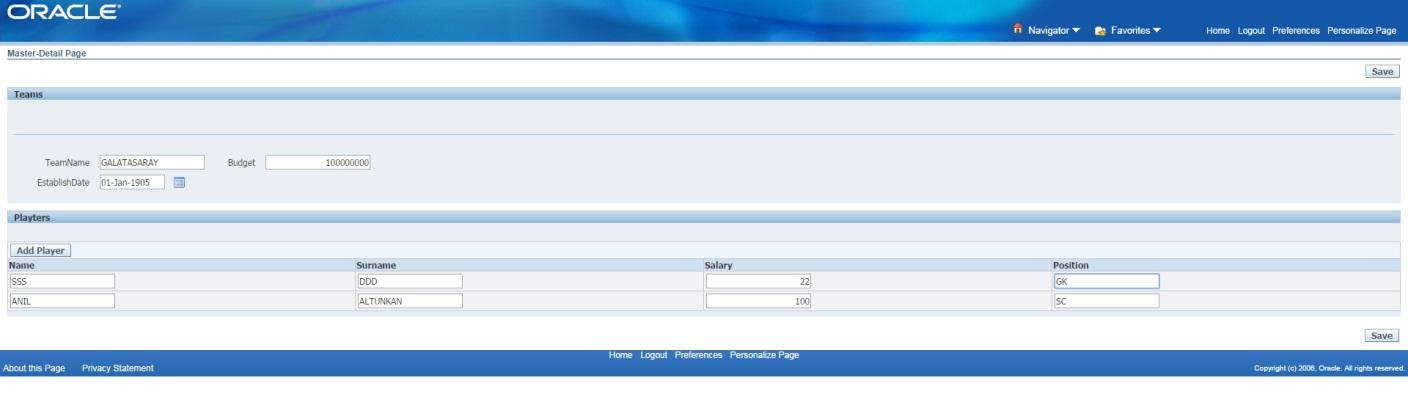

23. Run the page and test it.

24. Check the results.

select * from xxntc.xx_teams;

select * from xxntc.xx_players

Reference: http://www.anilaltunkan.com/en/oracle-3/oracle-application-framework-oracle/oaf-master-detail-page/
